Topton Firewall NAS Fanless Mini PC Core I3 N305 N100 DDR5 2xNVMe 4x I226-V 2.5G LAN 8xUSB Proxmox Host Home Lab Server Computer
Regular price
Sale price
£186.02
/

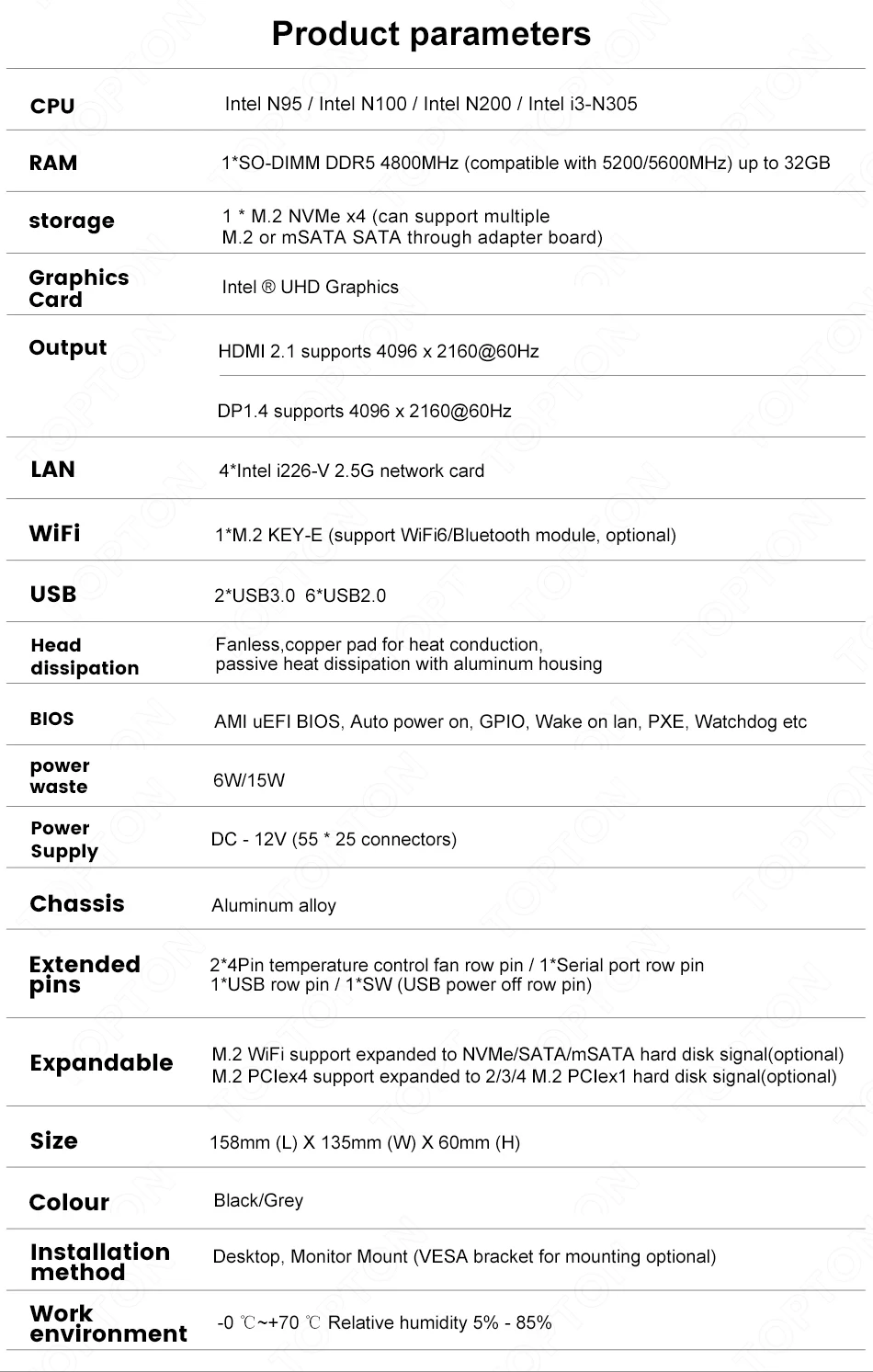

SPECIFICATIONS
After-sales Service: Return and Replacement
Hard Drive Type: SSD+HDD
Video Memory Type: With the main memory
Warranty(Year): 3-Year
brand name: Topton
graphics card chipset: Integrated Card
hdd rotation speed: SSD
model number: X4C-L
mouse & keyboard: No
operating system: Linux
place of origin: China
products status: New
ram type: DDR5
use: Industrial
video card: Intel UHD Graphics

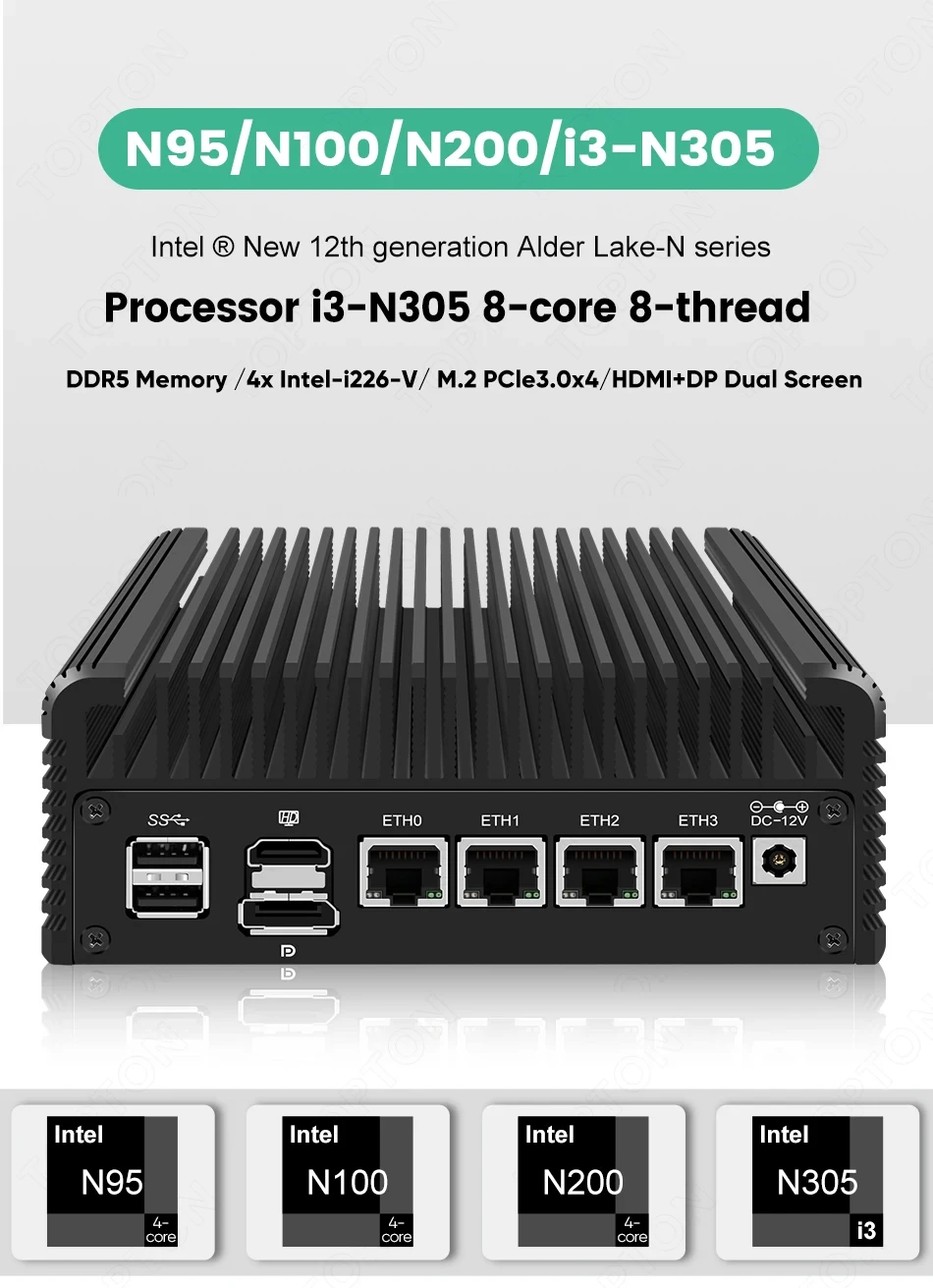

Solid Firewall Computer Soft Router In-tel i3 N305 N355 N150 N100 DDR5 4xi226-V 2.5G LAN Fanless Mini PC Proxmox ESXi Host Server
Notice In-tel i226-V is a new network card, pfSense-CE etc system suppliers maybe have not released compatible driver to match yet,suggest to install newest version of following systems: pfSense Plus, OPNsense 22.x, OpenWrt, ESXi, Proxmox, PVE, CentOS etc.
Product Highlight

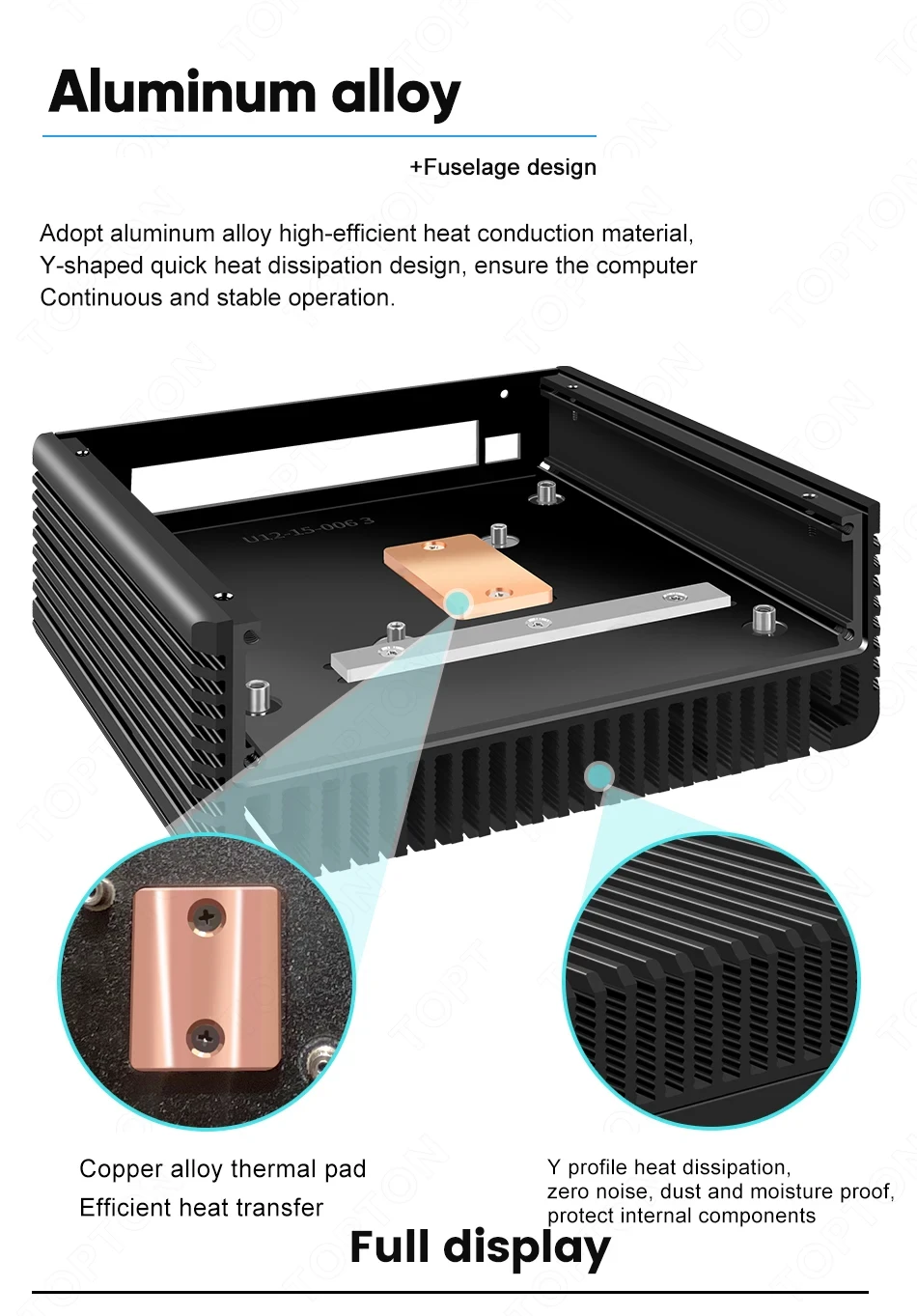

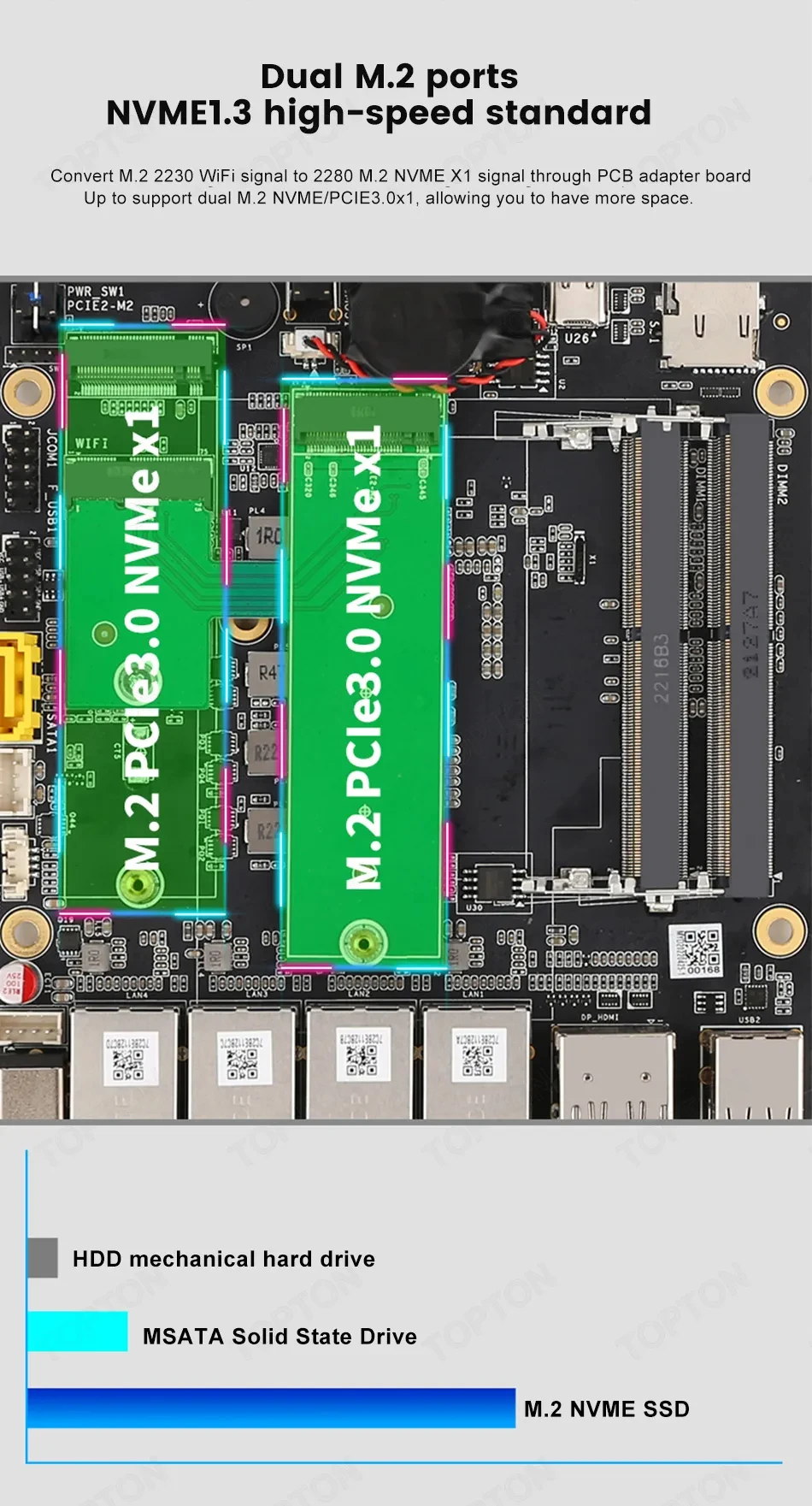

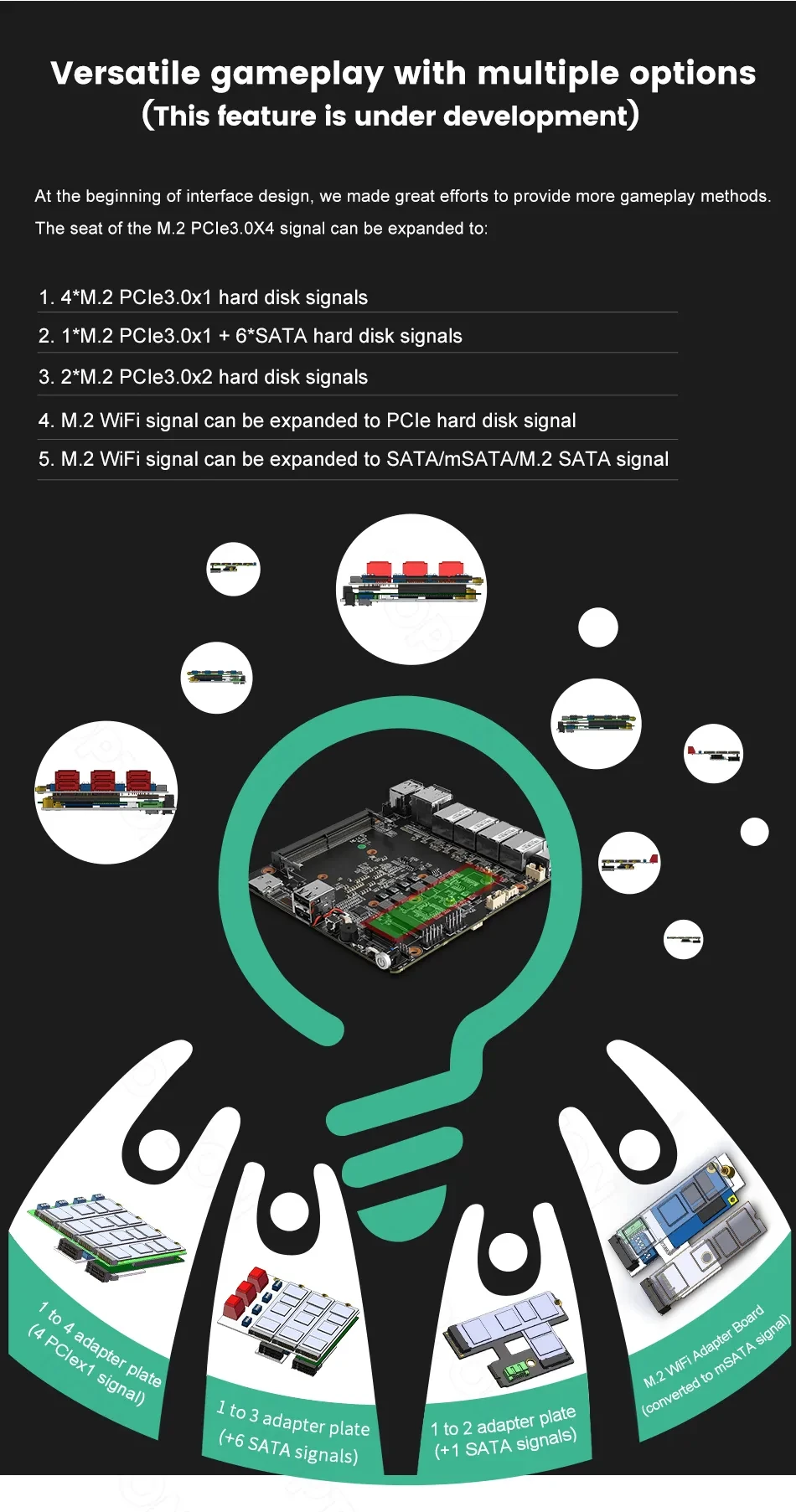

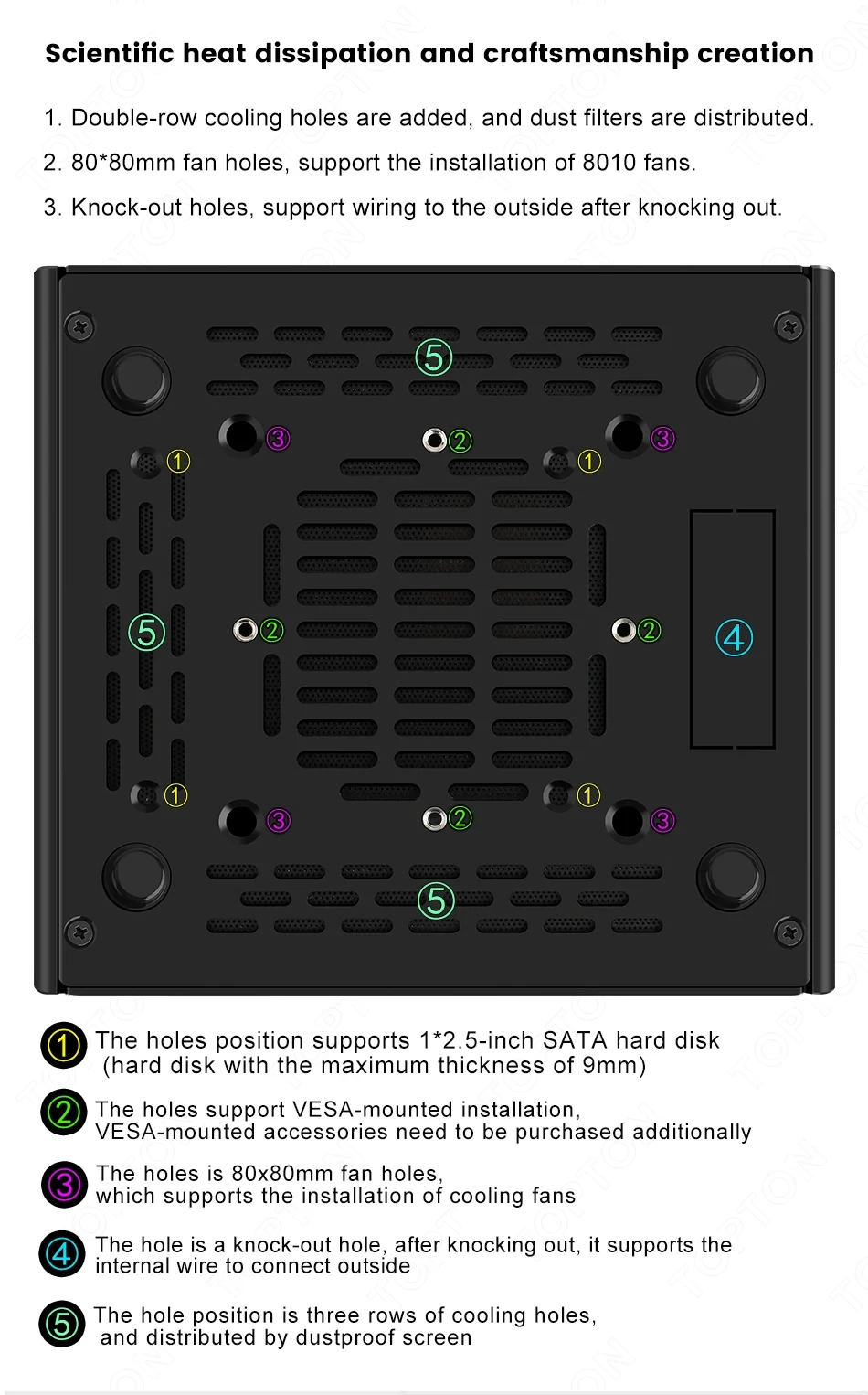

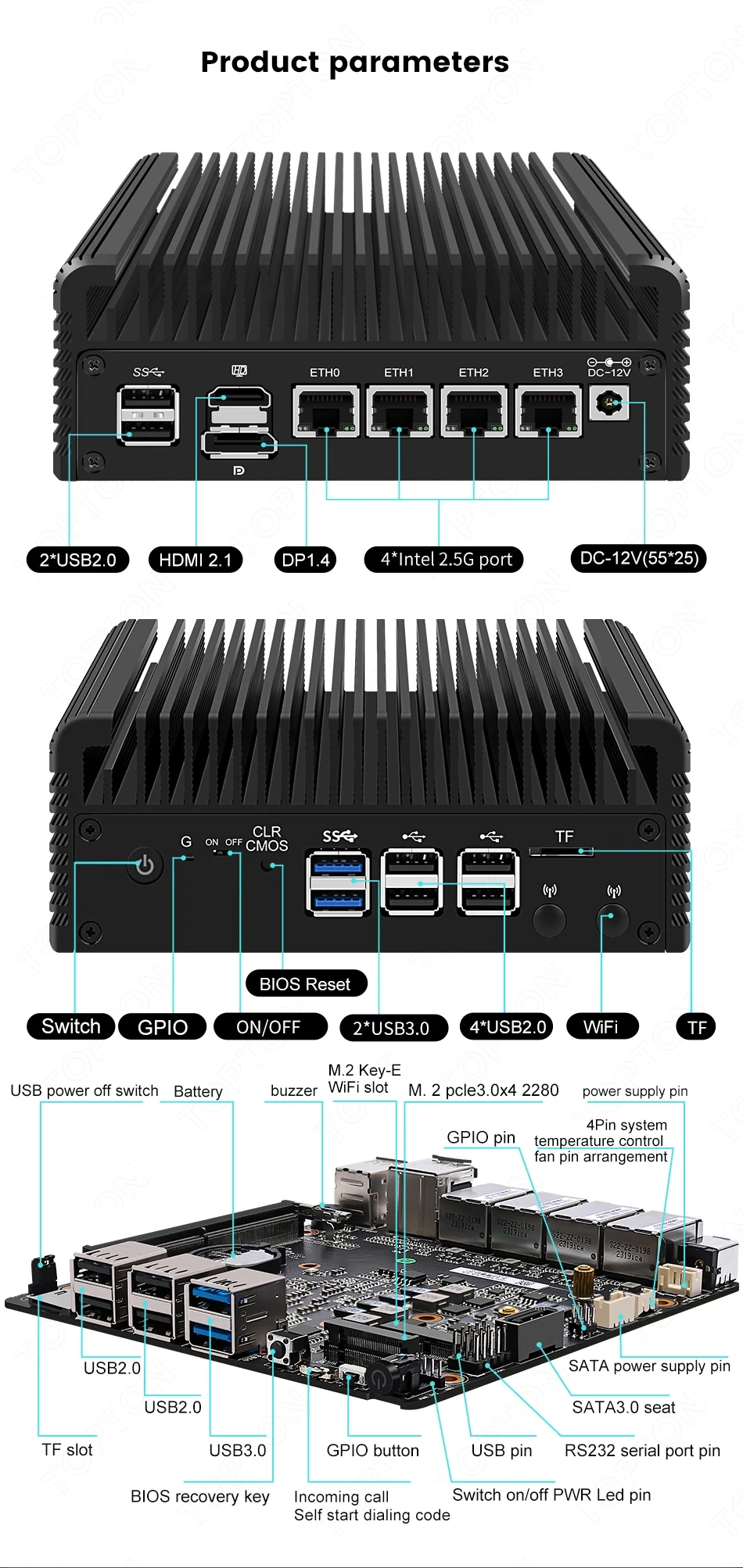

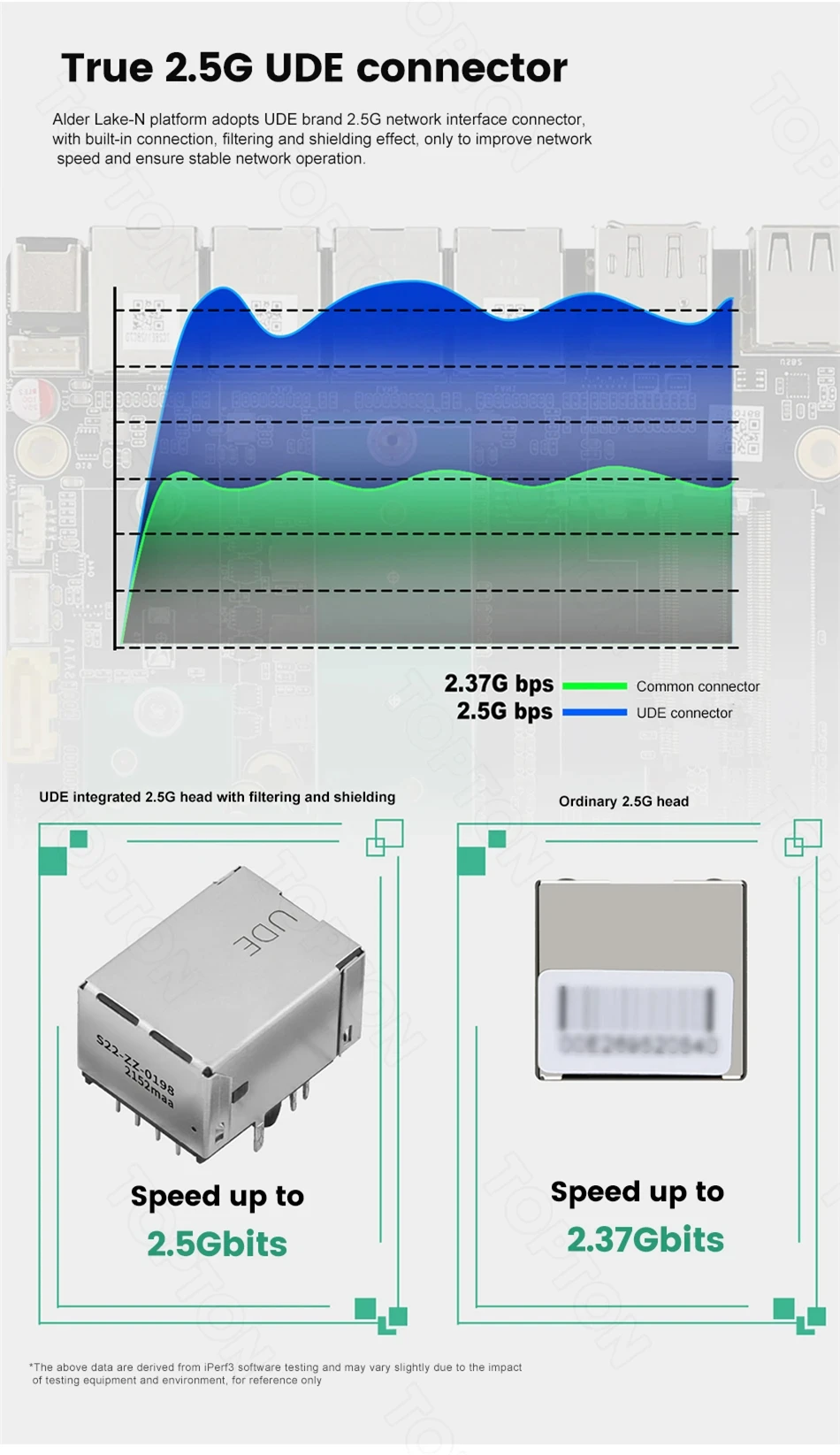

-4xIn-tel i226-V 2.5G UDE filter pure RJ45 LANs, 2xUSB3.0, 6xUSB2.0. -1xDDR5 SODIMM ram slot, support 4800MHz. -Support dual storage: 2xM.2 NVMe/PCIe3.0 2280 SSD. -1xM.2 2230 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0 2280 SSD with PCB adapter board. (SATA3.0 signal was blocked if M.2 2230 slot was used) -1xTF card slot support storage and system boot. -Support dual display: 1xHD-MI2.1, 1xDP1.4, 2x4K@60Hz UHD video display. -Support wide voltage 12-19V input. -Support TPM2.0, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc. -Full Aluminum Alloy high quality solid-built shell with three-sided long fins as heat-sink, efficient cooling performance, Exquisite production craft on outside design. -Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours. -Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List 1xMini PC 1xPower Adapter 1xPower Cord 1xM.2 2232 to 2280 PCB adapter board 1xScrews Bag

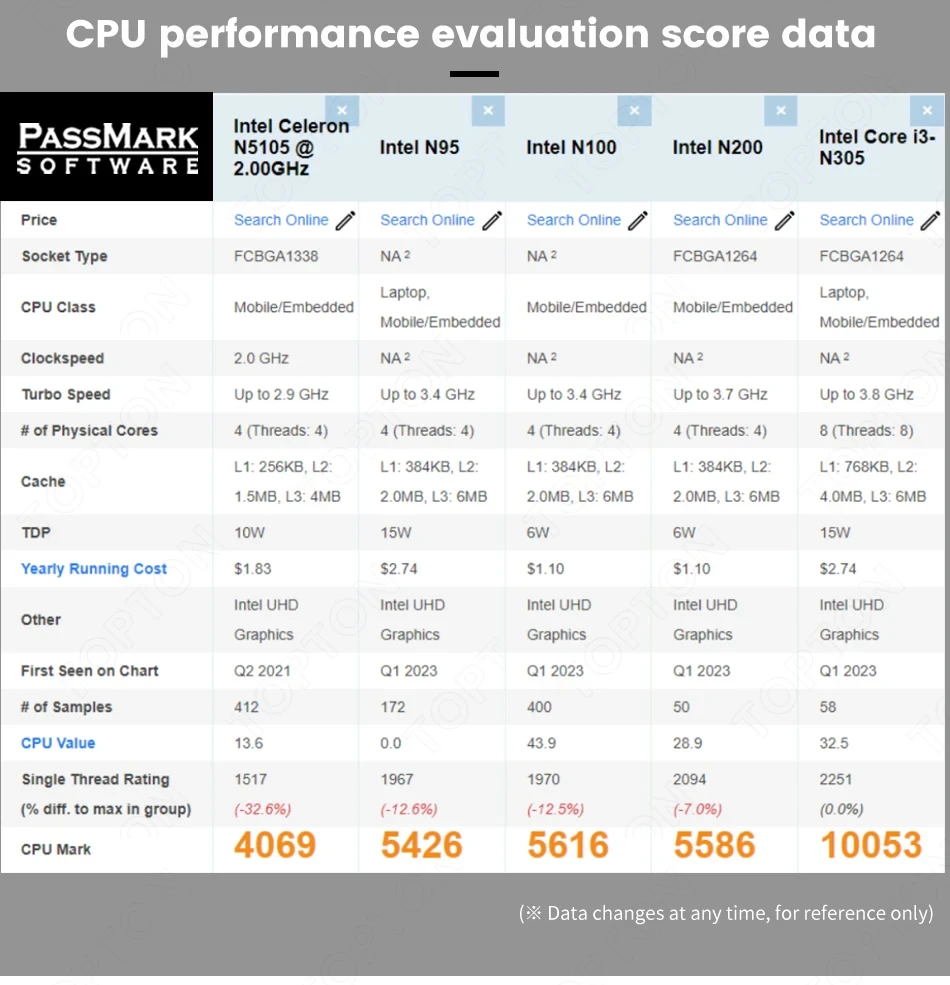

Processors
Cores & Threads
Cache
Max Turbo Frequency
TDP
Graphics
In-tel N100
4 cores, 4 threads
6M
3.40 GHz
6W
In-tel UHD Graphics 750MHz 24EUS
In-tel N200
4 cores, 4 threads
6M
3.70 GHz
6W
In-tel UHD Graphics 750MHz 32EUS
In-tel Core i3-N305
8 cores, 8 threads
6M
3.80 GHz
15W
In-tel UHD Graphics 1250MHz 32EUS
Core 3-N355
8 cores, 8 threads
6M
3.90 GHz
15W
In-tel UHD Graphics 32EUS
Product Description
Application area
What's the mini computer can do? 1. Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect; 2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others; 3. Game playing: Support most online games and PC games, like Warcraft, Counter-Strike (CS). 4. Entertainment: Support blu ray 1080P and 4k video play, XBMC and others.
Customizable
About Print Logo:
Pls send us a high-resolution file by JPG/PDF/PNG format).
Why Choose Us
Topton Technology Co.,Ltd :
1. 3 Years long warranty, Confident to cooperation with us!!! 2. OEM/ODM Service For big order quantity. 3. Free to Install Operating System(Windows/Linux/Pfsense/Ubuntu etc) before delivery. 4. Over 10 years experience in computer industry,We sure to provide you our best service and support to increase your sales and market shares!!!
1. Raw Material
Raw Material,CPU, Ram, Storage, Battery, Wifi etc
2. Professional SMT process
Automatic SMT production line +
8 inspection processes
3. Function Test
Every PC must test for at least 2 hours
4. Assembly
Produce 500+ Computer every day
5. Aging Test
Long time aging test(3D Mark,AIDA64) to ensure high-quality
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity. 2.Packaging Way: 1unit packed into a individual box, 10units individual box a Pack. 3.Shipping Way: Small QTY, Our customer can choose ship by DHL, Fedex, UPS. For large QTY, We can support to ship by air or by sea.
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service? Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following: 1) provide your specific requirement. 2) our design engineer draw the design draft. 3) you confirm the design draft. 4) we start produce it. Q2. Can you print my logo on the mini computer ? Re: Yes, it is support . And we can make print your logo on the PC for free by laser engraving! Q3. What is the Minimum Order Quantity (MOQ)? Re: We can support 1unit sample for your test. Q4. What is the lead time of your products? Re: Sample order: 3-7 working days . Bulk order:3~15 working days ( depends on order qty); Q5. How will you deliver my goods to me? Re: We can ship by DHL, UPS, FedEx, TNT, etc international air express services; Q6. What's the warranty? Re: 3 years long warranty ! Whole lifetime technical support, Buy with confidence!
