Small Factor Mini PC N3700 J3710 Industrial Fanless Box Computer Dual HD 4GB Video Memory DDR3 RAM RS232 US/EU Plugs for POS
Regular price £100.22SPECIFICATIONS
After-sales Service: Call Center and on-line Technical Support
CPU: N3700 Or J3710 quad core processor
Display Interface: Support 2*HD, 1*DP, Support three Display
Display port: Support 1*DP, 2HD
Hard Drive Type: SSD+HDD
LAN: 2* RTL8111E 1000M lan
Operating System: Support Win7/Win8/Win10 or Linux
Power Supply: 12V/4A DC_12V
RAM: 1*SODDR3L 1333/1600MHz
Storage: 16G/32G/64G/128G or 500G/1T
USB Port: 4*USB2.0, 2*USB3.0
Video Memory: 4 GB
Video Memory Type: GDDR3
Warranty(Year): 3-Year
brand name: Iwill
chipset type: Intel H110
graphics card chipset: Integrated Card
hdd rotation speed: SSD
key words: mini pc dual nic
model number: N5 Plus
mouse & keyboard: No
operating system: No
place of origin: Guangdong, China
plugs type: US,JP,CN,AU,UK,EU
power: 10w
processor core: Quad Core
processor series: Intel Celeron
processor type: Intel Celeron
products status: New
ram type: DDR3
use: For Business
video card: Intel HD graphics
Notice: This link is barebone price, no incude ram,hard disk WiFi,BT,os, If you need them, please contact us, we will give you the best price.

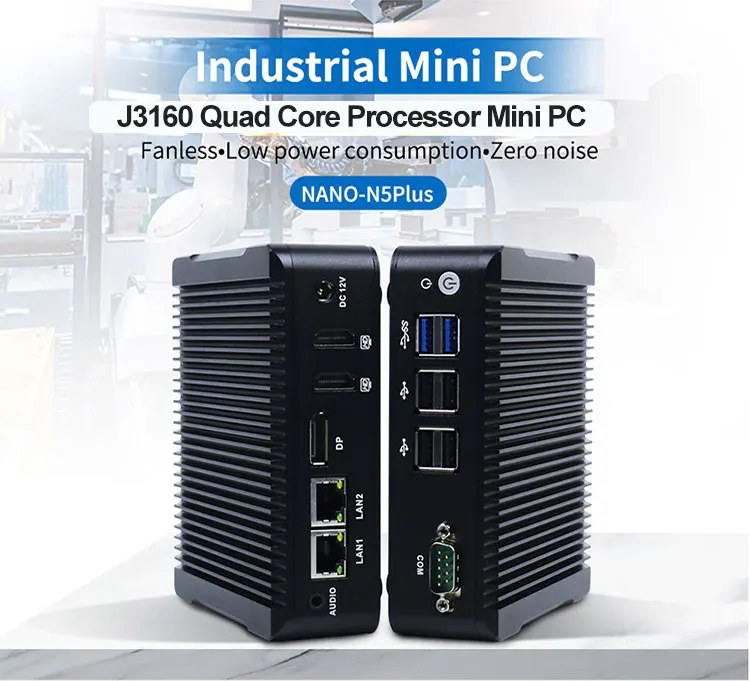

Small factor mini pc N3700 J3710 quad core industrial fanless box pc mini computer RS232 with dual HD for POS
1) In-tel Pentium N3700 or J3710 quad core
2) Support 1xDP+2xHD+2*LAN+1*COM+4*USB2.0+2*USB3.0
3) AMI 32MB Flash ROM .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT

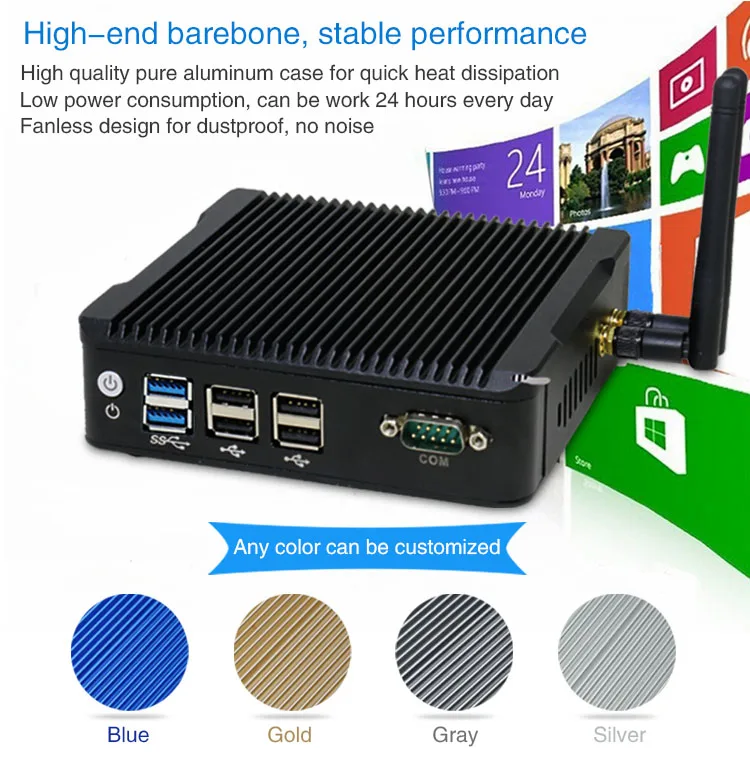

4) High-quality pure aluminum Case
5) 1*mini-PCIE, support Wifi and BT
6) 2*RTL8111E 1000M lan, support wake on lan
7) DC-IN 12V power supply and AC power adapter
8) Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal,Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance,Parking Pay Station, Channel System, Medical electronic etc.
Product Paramenters
Model |
N5 Plus |
Case Color |
Black (Color can be customized) |
Material |
High-quality all aluminum，surface anodic oxidation |
CPU |
In-tel Pentium J3710 (Quad core quad threading，1.6GHz，Max turbo 2.64GHz) |
BIOS |
AMI EFI BIOS |
RAM |
1xDDR3L 1600MHz SODIMM RAM Slot，Max. 8GB |
Storage |
1xMSATA，1x2.5” HDD |
Display Chip |
In-tel HD Graphics |
Display Interface |
1xDP，2xHD (Support synchronous and asynchronous dual display) |
Front I/O |
1xPower Switch 2xUSB3.0
4xUSB2.0
1xRS232 COM
|
Rear I/O |
1*Audio(2 in 1) 2*RJ45 LAN
1*DP
2*HD
1*DC Input
|
Network Card |
2x10/100/1000M RTL8111H 1000M LAN |
Expansion |
1*MINI PCIE Slot（Support MSATA） |
1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot |
|
Other Function |
Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog（0～255 level) |
Power Supply |
DC 12V |
Work Temp |
0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
Work Humidity |
5% ～ 95% non-condensing |
Cetificates |
CE, CCC, FCC Class A, ROHS |
Dimension |
134 * 126 * 38.5mm |
Net Weight |
0.7kg |
Application |
Applied in Office, Home, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, Networking, etc . |
