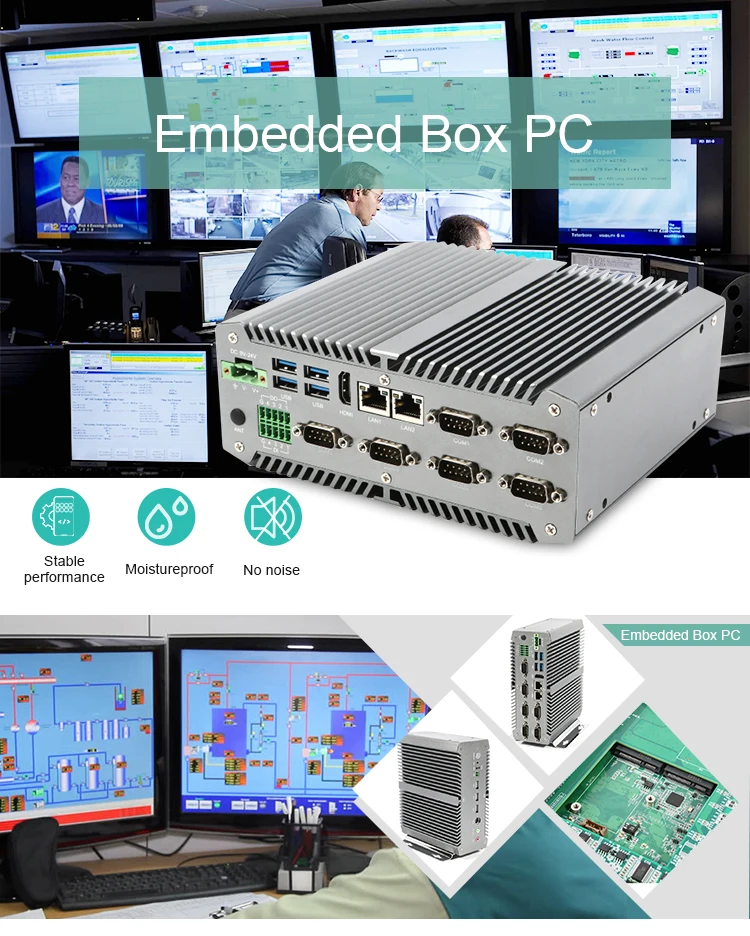

Embedded System Industrial Computer Arm Processor Mini Pc Core Procesador Mini-pc
Regular price £314.34SPECIFICATIONS
After-sales Service: Repair
CPU: Core i5-6200U (6COM)
Chipset: Skylake ULT SOC
Com: 6*COM
Display: 1*HD
Expansion: 1* mini-PCIe WIFI; 3G/4G module(optional)
Hard Drive Type: SSD
OS: Win7/8/10, Linux
RAM: Onboard DDR4 2133MHZ 4GB, up to 8GB
Storage: 1*mSata slot; 1* M.2 NVME
USB Port: 4*USB3.0, 4*USB2.0
Video Memory: Share with main memory
Warranty(Year): 2-Year
Working Temp.: -40°C~ 65°C (-40°F~149°F)
brand name: EVUC
graphics card chipset: Integrated Card
hdd rotation speed: SSD
model number: EVC-6016
mouse & keyboard: No
operating system: Win7/8/10/Linux
place of origin: Guangdong, China
plugs type: US,JP,CN,AU,UK,EU
processor series: Intel Core I5
processor type: Intel Core i5-6200U
products status: New
ram type: DDR4
use: Industrial
video card: Intel HD graphics
Embedded system industrial computer arm processor mini pc core procesador mini-pc

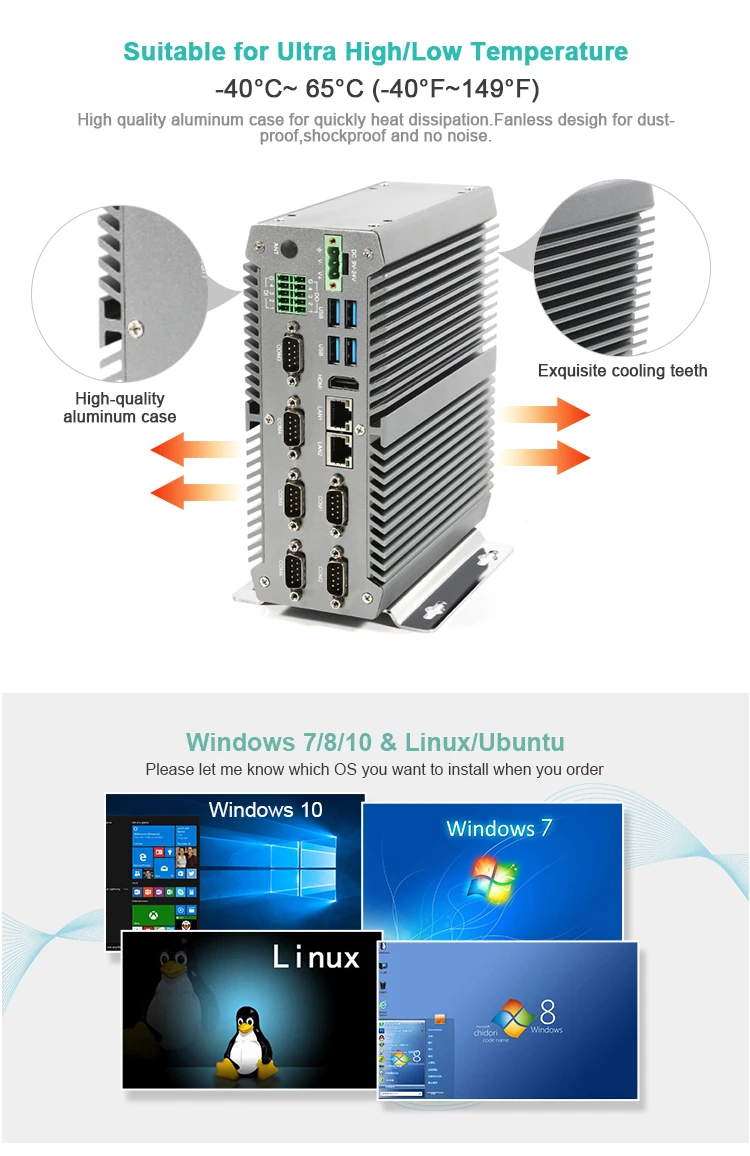

2. Extremely high/low Working Temp. -40°C~ 65°C (-40°F~149°F)
3. 6 COM RS-232/422/485, Opto-isolated is optional for COM3~6
4. 3 side fin shape heat-dissipating al. aloy housing, for fast fanless cooling
5. DC 9-36V wide range power input
| Category | Descriptions | |
| Model | No. | EVC-6016 |
|
Nucleus Module |
CPU | Core i5-6200U (Dual Core Quad Threads 3M Cache, Max 2.8 Ghz) |
| Chipset | Skylake ULT SOC integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR4 2133MHZ 4GB, up to 8GB | |
| Storage |
1*mSATA slot; 1* M.2 NVME Msata 64/128/256GB |
|
| Graphic | Integrated HD Graphics 510/520 | |
| Network |
2*Ethernet Controller I211-AT 1000M lan |
|
| I/O | Lan | 2*RJ45(Gigabit Ethernet) |
| USB | 4*USB3.0, 4*USB2.0 | |
| Display | 1*HD-MI | |
| COM | 6*COM RS-232/422/485, optic isolation optional for COM3~6. | |
| SPK | 1*Line-out | |
| Mic | 1* Mic-in | |
| Button | 1*Power button, 1*Reset switch | |
| Indicator | 1*Power indicator, 1*HDD indicator | |
| Phoenix | 1*2pin Phoenix terminal power input | |
| 1*16bit GPIO interface(8-in 8-out) | ||
| Expansion | 1* mini-PCIe(for WIFI or mSATA); 1× SIM slot(3G/4G) | |
| OS | Operating System | Win7/8/10, Lin-ux |
| Structure | Dissipation | high-quality aluminum alloy case |
| Housing | aluminum alloy | |
| Bracket | 2 brackets for wall or rack mounting | |
| Dimensions | 215.0*160.0*65.0 mm / 8.5*6.3*2.4 Inch (WxDxH) | |
| Weight | 2.7KG(N.W.) | |
| Power | DC In | DC 9-36V |
|
Temperature & Humidity |
Working Temp. | -40°C~ 65°C (-40°F~149°F) |
| Strorage Temp. | -40°C~ 80°C (-40°F~176°F) | |
| Working Humidity | 10% - 95% @40°C non-condensing | |
| Certificate | Safety | CE, FCC, RoHS |
| Packing | Items | box pc, power adapter, power cord, CD driver, screw package, brackets |
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
